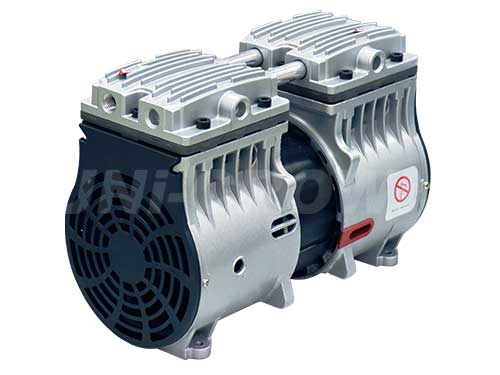

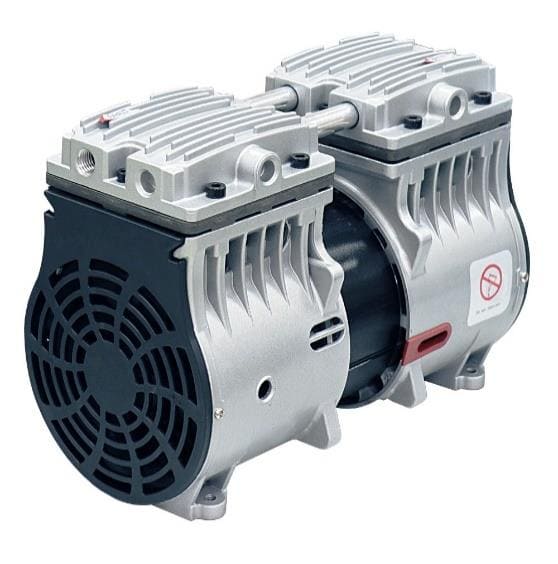

UN-90V Oilless Vacuum Pump

Category: Tag: Brand:

UN-90V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum:680mmHg Max Flow:90LPM

Oil-less operation, Non-lubricated piston and cylinder (Clean air stream, less maintenance), Easily replaced piston seal, Balanced for smooth, low vibration operation, Light weight die-cast aluminum components, Permanently lubricated bearings, Stainless steel valves, Twin fans provide cooling air through and around motor and cylinders, All wetted aluminum parts treated for corrosion protection from moisture, Thermally protected permanent split capacitor AC motors, One Year Warranty Provided

Semiconductor automation equipment, Vacuum packaing, spin coater, Labeling machine, Robotic arms.

CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009

RoHS Certification

Product Specifications


Product Performance

oilless vacuum pump UN-90V-Performance

Product Dimensions

oilless vacuum pump UN-90V-Dimensional-drawings
