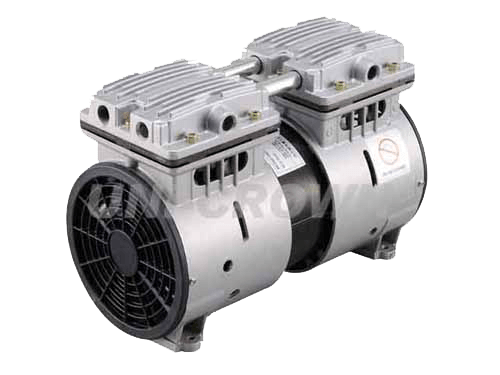

Oilless Air Compressor UN-90P

Request a Quote

    Feature:
    RoHS Certification, Oil-less
    Non-lubricated cup and cylinder
    Long-life cup design, Stainless-steel valves
    Thin wall cylinder for good heat transfer

    Application:
    Medical / Various pressure application



      Rated Voltage  V   AC 110 or 220
      Presure  kgf/cm2   7
      Open Flow  LPM   90(60Hz) /72(50Hz)
      Power Consumption  W   520
      Dimension  mm   239 x 128 x 176
      Installation Size  mm   203.5 x 89 x M6
      I.D. of screw thread  PT   1/4"
      Weight  kg   7.4



    download icon Download Catalog
