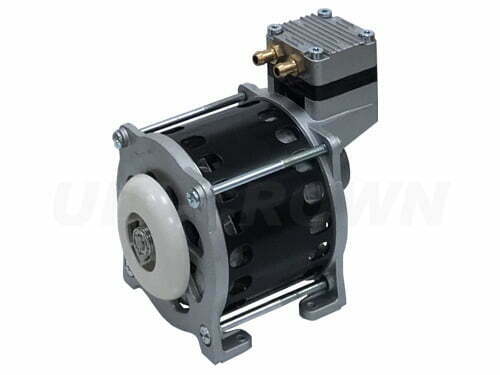

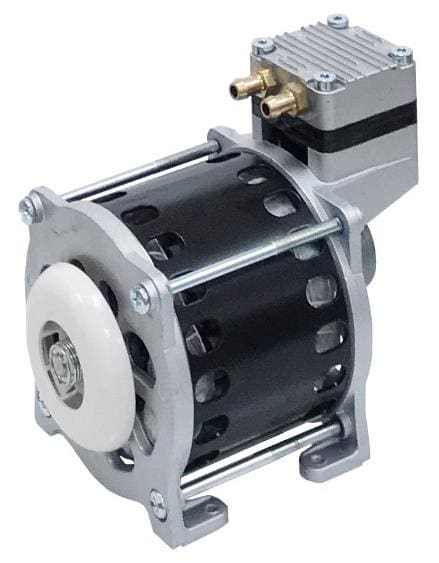

UN-16Y Oilless Vacuum Pump
Oilless Vacuum Pump│Vacuum Pump│UN-16Y
Feature：
Can be used as vacuum pump,Oil-free, non-lubricated piston and cylinder, and a module with a semipermanent life
Application：
Nebulizers, ink cartridge chargers, suction units,endoscope cleaners, interference wave curers,ozonizers, skin care devices, etc.
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
| SPEC | UNIT | SPEC.Value |
|---|---|---|
| Rated Voltage | V | AC 110 or 220 |
| Max.Vacuum | mmHg | 600 |
| Pressure | kgf/cm2 | 2 |
| Open Flow | LPM | 20(60Hz) / 18(50Hz) |
| Power Consumption | W | 80 |
| Dimension | mm | 145 x 94 x 128.3 |
| Installation Size | mm | 46 x 78 x M5 |
| Hose ID Suggestion | PT | Φ 6 |
| Weight | kg | 1.9 |
Product Performance
Product Dimensions
Download >> Catalog UN-16Y
