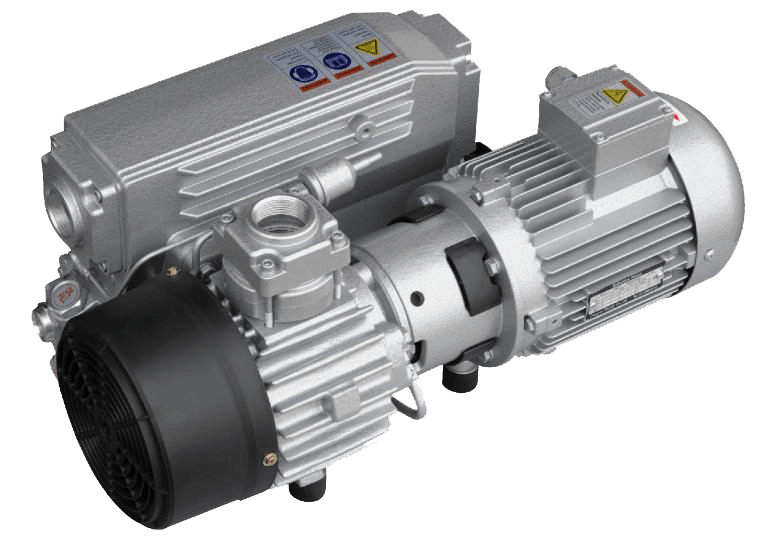

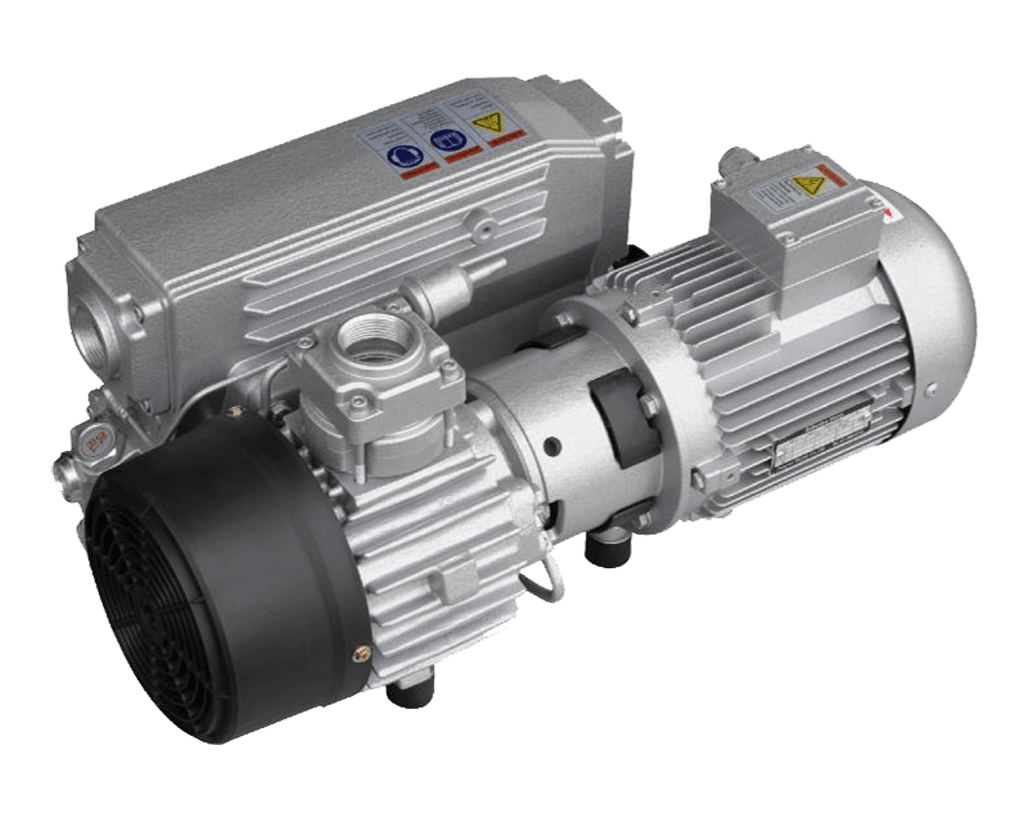

Wonvac Oil sealed Rotary Vane Vacuum Pump WOVP-060 & 080
WOVP-060 & 080
Single Stage, Oil Re-circulation, Air Cooled, and Direct Driven
- Compact Design - Reliability & Durability - Easy to maintain and operate
- Simple Installation - Air Cooled, No Water Required.
- Direct Drive - C-Face Design requires no belts
- Integral Exhaust Filter - Discharge Air 99.9% Oil Free
- Quite Operation
Standard Equipment: Composite Vane, Wire mesh Inlet Filter Screen, Vibration Isolator, TEFC
High Efficiency Motor, Anti-Suck Back Valve, Oil Level Sight Glass, Gas Ballast Valve (N & F Only), Spin-on Oil Filter.
Optional Equipment: Exhaust Pressure Gauge, Level Switch, and Heater
Specification
| Model | 60 | 80 | ||
| Displacement | 60 Hz | m3/h | 36 | 48 |
| 50 Hz | 30 | 40 | ||
| End Vacuum | F Type | mbar | 0.1 | 0.1 |
| Motor (3Ph) | IEC (Kw) | 60 Hz | 1.1 | 1.5 |
| 50 Hz | 0.9 | 1.1 | ||
| NEMA (Hp) | 60 Hz | 2 | 2 | |
| Motor (1Ph) | IEC (Kw) | 50/60 Hz | 1.5 | 1.5 |
| Revolution | RPM | 60 Hz | 1740 | 1740 |
| 50 Hz | 1450 | 1450 | ||
| Noise | dB (A) | 60 Hz | 67 | 67 |
| 50 Hz | 64 | 64 | ||
| Operating Temp. | ºC | 76 | 78 | |
| Oil Capacity | Ltr | 1.4 | 1.4 | |
| Connections | G (BSP) or NPT | Intake | ½” | ½” |
| Exhaust | 1-1/4” | 1-1/4” | ||
| Weight | kg (with motor) | 20 | 22 | |
